Chattanooga® LEGEND XT™ Machines

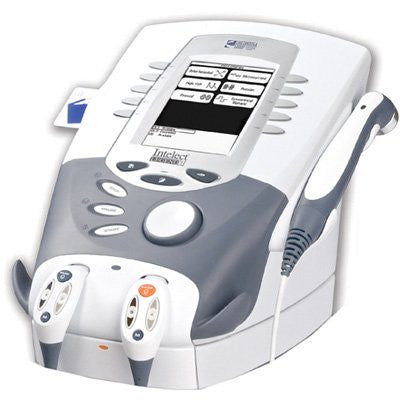

The Intelect® Legend XT is one of the most advanced therapy systems available. Beneath its award-winning, ergonomic design is a sophisticated, versatile, user-friendly system. The Intelect Legend XT lets you offer a comprehensive range of therapies in a single, state-of-the-art unit.

• Patented award-winning, ergonomic modular design
• Easy-to-add modularity allows the addition of two additional channels of electrotherapy or a battery module
• High contrast 5” (13 cm) FSTN LCD monochromatic user interface
• Two independent electrotherapy channels, expandable to four independent channels
• Multiple waveform electrotherapy-six clinical waveforms: Interferential, Premodulated, High Volt, Russian, Symmetrical Biphasic and Microcurrent
• Documentation of treatment data with Patient Data Cards
• User defined protocols for your specific needs
• Dual frequency ultrasound at 1 or 3.3 MHz
• Pulsed or Continuous Duty Cycles (10%, 20%, 50% & 100%)
• Four ergonomically designed soundhead applicator sizes: 1 cm², 2 cm², 5 cm² & 10 cm²
• – Watertight soundheads for use in underwater therapy

• Therapy System Cart maximizes storage of clinical supplies and organizes cables
• Optional Operator Remotes allow treatment stop, start and pause, as well as change in amplitude at any time during a treatment session. Each remote is color-coded for designation between channels.

Technical Specifications

• Mains Power: 100-240 VAC~50/60 Hz, 1.0 A
• Weight: 7 lb (3.2 kg)
• Shipping Weight: 16 lb (7.3 kg)
• Dimensions: 12.75”L x 11.4”W x 8.75”H (32.4 cm x 28.9 cm x 22.2 cm)
• Electrical Safety Class: Class 1, Electrotherapy Type BF,
• Ultrasound Type B
• Safety Tests: UL/IEC/EN 60601-1, IEC/EN 60601-1-2, IEC 60601-2-5, IEC 60601-2-10
